A910125 Board Stop Kit.png

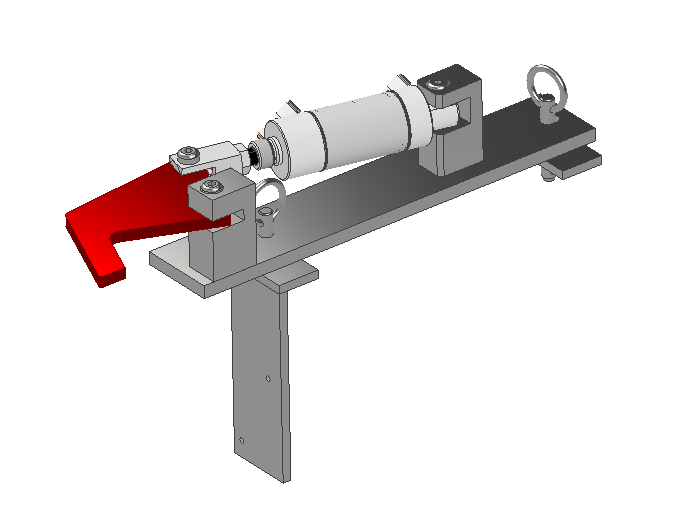

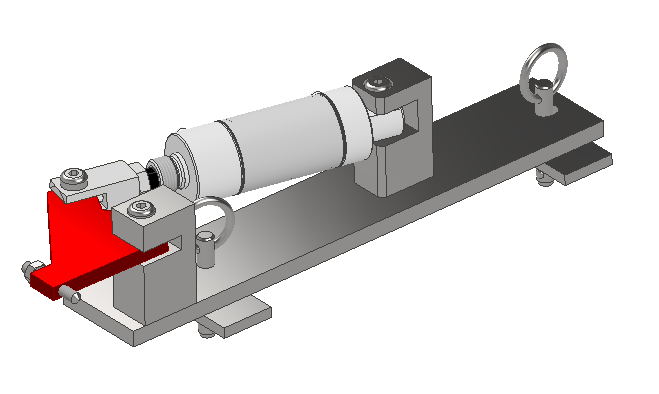

This kit converts the board stop air cylinders to a longer lasting and more cost-effective cylinder. All necessary hardware for the conversion is included in the kit. For efficient spare part storage 910153, 910154, and A910125 all use the same air cylinders.
Included:
QTY&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; PN&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Description
2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 200078&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Pneumatic Board Stop Air Cylinder
2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 200117&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Cylinder Rod Clevis
4&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 200237&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;90 Degree Air Fitting, 1/8&rdquo; NPT, 1/4&rdquo; Tube
2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 910124&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Board Stop
2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 910125&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Board Stop Cylinder Mount Weldment

Board Stop Upgrade Kit

Part Number

910154 Pallet Stop 1st Pinch.png

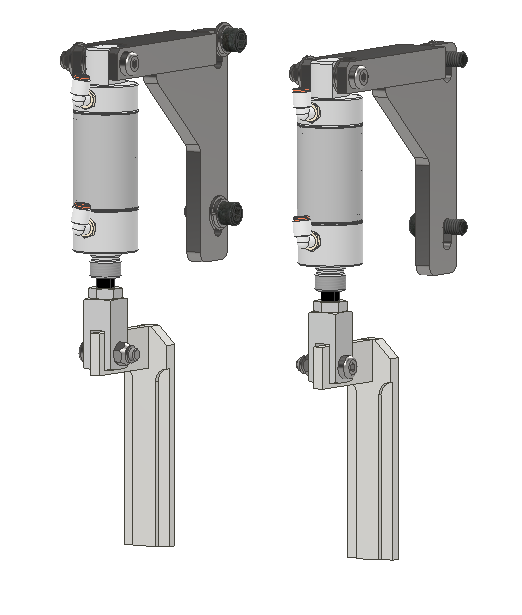

The Mead cylinder originally used by the OEM had an oversized rod and is no longer available. We developed a solution that mounted a cost-effective cylinder to a new weldment that operates and performs better than the original. For efficient spare part storage 910153, 910154, and A910125 all use the same air cylinders.

Pallet Stop Assembly, #1, Pinch

910153 Pallet Stop Near Turner.png

Pallet Stop Assembly, #2, Near Turner

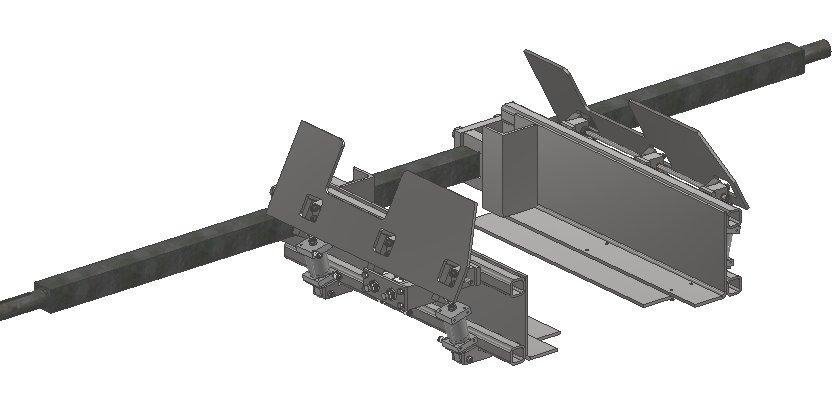

700810 OC Turner Pic 1.png

Replacment assembly for machines that have been prior converted to an OC Turner.

OC Turner Replacement Assembly

700810 OC Turner Pic 2.png

700810 OC Turner Pic 3.png

A400031 Banner.png

The original manufacture used two different sensors over the years. Both of which were inferior and very expensive. First was a Cutler Hammer inferred photo eye that struggled to pick up dark lumber or mold. Secondly a 30mm photo eye shaped like a proximity sensor was used. This sensor used a red light that picked up dark lumber much better than the inferred sensor, but the cost increased significantly. The Banner Conversion Kit averages about half what the competitor&rsquo;s sensor alone costs. The kit comes with all wiring, bracketry, and hardware for installation.
Item&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;PN&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Description
100010&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Screw, Pan Head 6-32 X 1
100053 &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 2&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Screw, Socket Head Cap, 10-32 X 1
400031 &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 1&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Sensor, Banner Board, Photo Eye
400222&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Cable, Board Sensor, Turk
1001941&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;1&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Mount, Nut Plate, Board Sensor
700408&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Mount, Banner Board Sensor

Banner Board Sensor Conversion Kit

A400467 Turner and Gearbox Upgrade.png

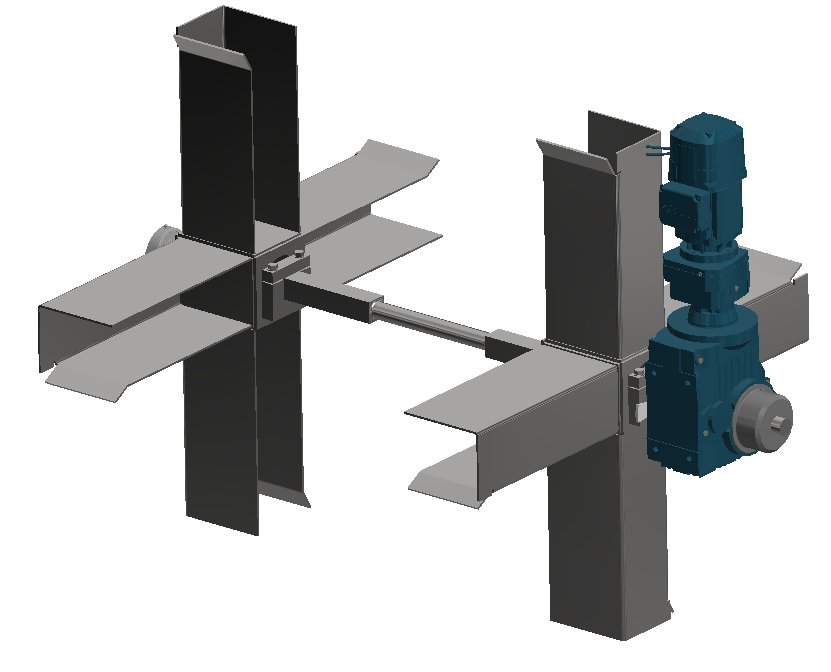

The Star turner on the 504 is hydraulic driven through a Durst gearbox and it is no longer available for purchase. The 505 machine&rsquo;s the gearbox is electric, however the SEW gearbox is less expensive and has proven to hold up better. Our kit converts both the 504 and 505 over to a reliable gearbox with an electric brake motor stops much more consistently. All necessary hardware is included and some welding is required.

Star Turner, SEW Gearbox Upgrade Kit, For 504 and 505

A10138 OC Turner Kit Old Gearbox 1.png

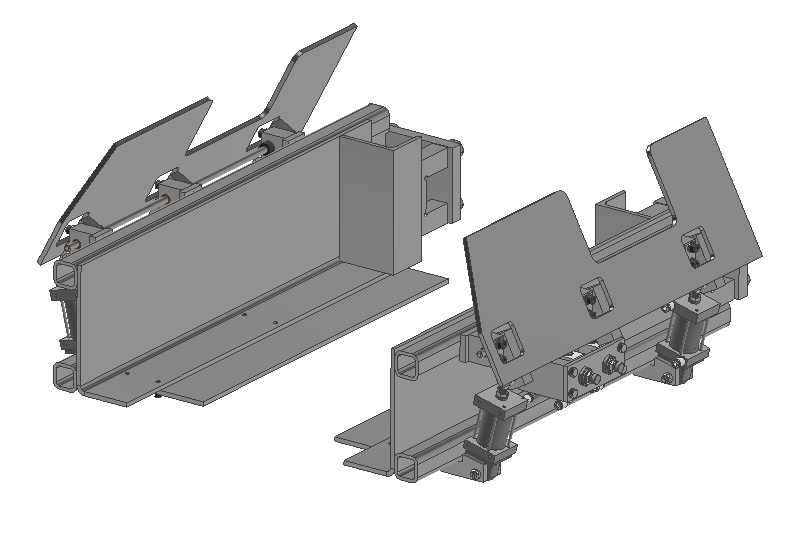

OC Turner upgrade kit improves the speed of the turner's flip cycle time by opening and dropping the pallet before having to reach the bottom of its cycle. This allows the bed conveyor to start moving quicker and the turner to flip over and get the next pallet sooner. This kit uses the existing Durst gearbox.

OC Turner Upgrade Kit, uses Old Gearbox

200332 Rotary Actuator.png

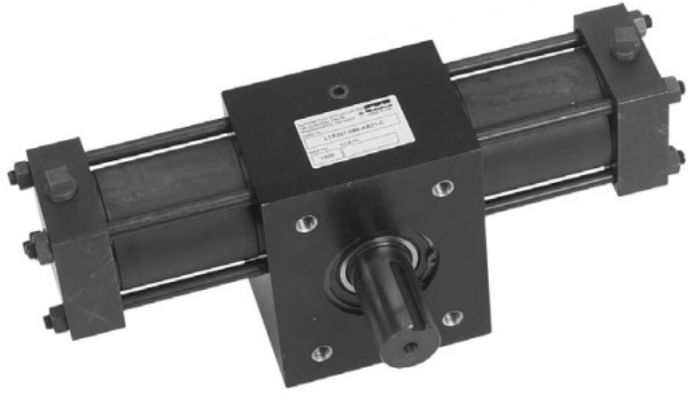

OC Turner upgrade kit improves the speed of the turner's flip cycle time by opening and dropping the pallet before having to reach the bottom of its cycle. This allows the bed conveyor to start moving quicker and the turner to flip over and get the next pallet sooner. This kit uses a rotary actuator to replace the obsolete Durst gearbox.

OC Turner Upgrade Kit, with Rotary Actuator

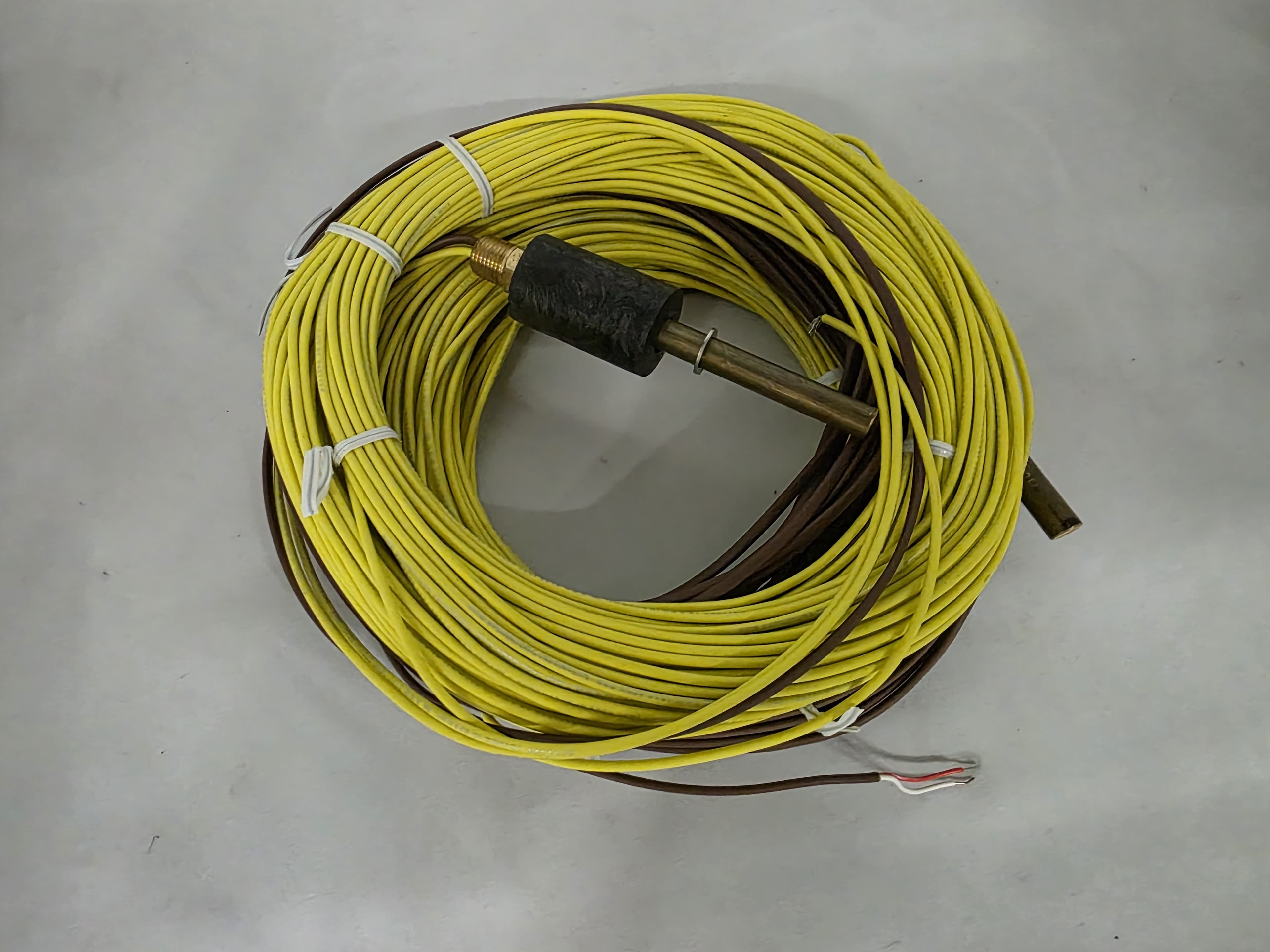

This kit retrofits a thermocouple to existing hydraulic power units. It allows the oil temperature to be read from the operator&rsquo;s screen and allows for control of an oil cooler if applicable. This kit requires the machine to have a PMG electrical upgrade. *Welding required.

Hydraulic Thermocouple Kit with Float Switch

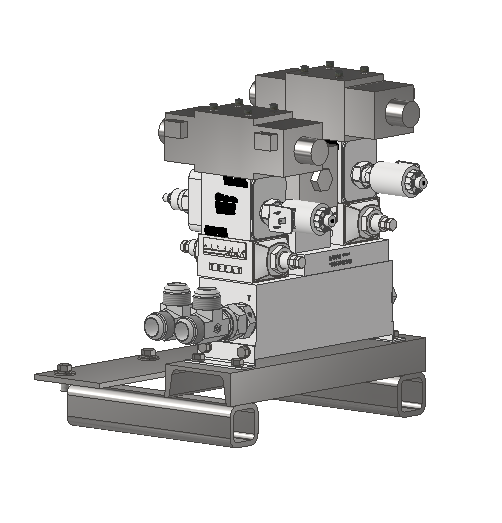

Reduce leaks and increase speed consistency with our lower manifold upgrade kit. The original bed conveyor speed control valves on the Duo-Matic, 503, &amp; 504 machines are needle valves plumed into the steel hydraulic lines. This system has many connection points that often leak. These valves also tend to vibrate open as the machine operates causing the bed conveyor to have inconsistent speeds, leading to frequent adjustments. This kit Is the same as A10136, but it includes an added valve for the hydraulic turner.

Lower Hydraulic Manifold for Machines with Hydraulic Turner

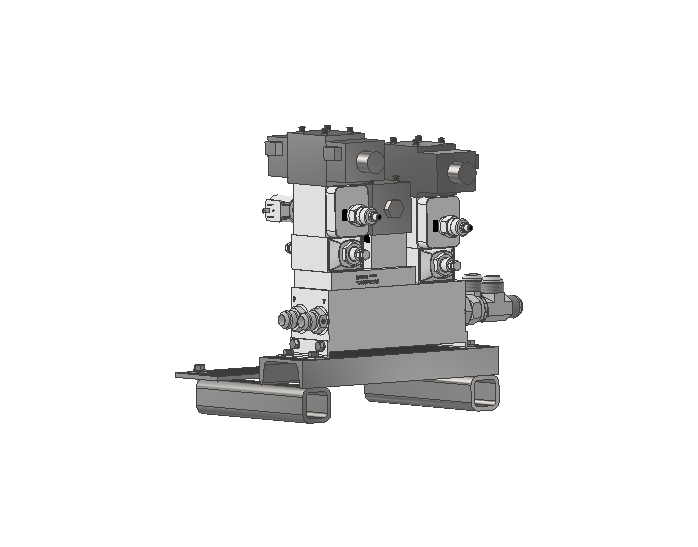

Reduce leaks and increase speed consistency with our lower manifold upgrade kit. The original bed conveyor speed control valves on the Duo-Matic, 503, &amp; 504 machines are needle valves plumed into the steel hydraulic lines. This system has many connection points that often leak. These valves also tend to vibrate open as the machine operates causing the bed conveyor to have inconsistent speeds, leading to frequent adjustments.&nbsp;

Lower Hydraulic Manifold for Machines with Electric Turner
