Catalog

Type:&nbsp;&nbsp; Manifold
Sub 1:&nbsp;&nbsp; D05
Sub 2:&nbsp;&nbsp; 2 Position
Sub 3:&nbsp;&nbsp; Parallel
Machine:&nbsp;&nbsp; DUO-MATIC, 503, 504, 505, TC-100, TC-1000, CHAMPION, NFLZ, TITAN

Part Number

D05, TWO STATION MANIFOLD, PARALLEL

Type:&nbsp;&nbsp; Manifold
Sub 1:&nbsp;&nbsp; D05
Sub 2:&nbsp;&nbsp; 3 Position
Sub 3:&nbsp;&nbsp; Isolation Plugs
Machine:&nbsp;&nbsp; 505

D05 3 POSITION MANIFOLD WITH ISOLATION PLUGS


Type:&nbsp;&nbsp;&nbsp;Manifold
Sub 1:&nbsp;&nbsp; D05
Sub 2: &nbsp; 3 Position
SAE Size:&nbsp;&nbsp; #8 &amp; "12 SAE
Machine:&nbsp;&nbsp; DUO-MATIC, 503, 504, 505, TC-100, TC-1000, CHAMPION, NFLZ, TITAN

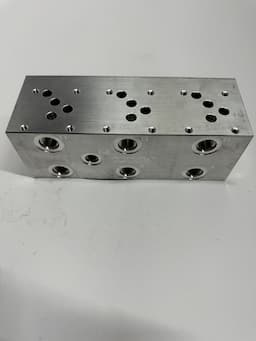

3 POSITION DO5 MANIFOLD
